Product Center
Product Categories
Accessory Equipment
4 products

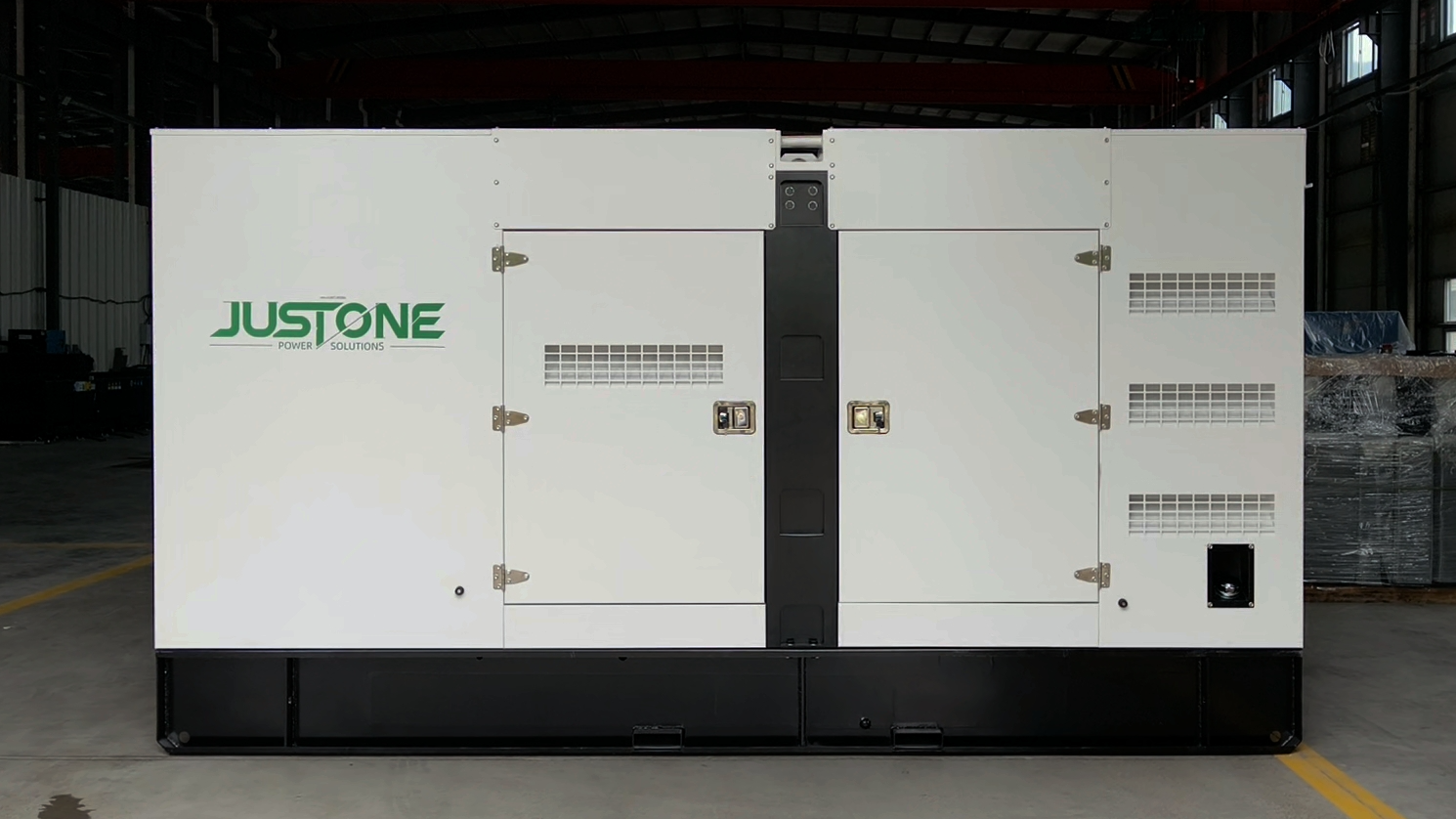

Silent Box / Rain Cover
Power Range:Compatible with 16-1000kW units
Professional-grade generator soundproof enclosure and rain cover, constructed from high-quality cold-rolled steel. Features built-in high-efficiency sound-absorbing material to effectively reduce operating noise by 15-25dB(A), while providing IP
View Details
Mobile trailer
Power Range:Capacity 500L-5000L
Dedicated fuel tanks and day tanks for generator sets, available in multiple sizes ranging from 500L to 5000L. Features a double-wall design with standard fittings including level gauges, drain valves, and vent valves.
View Details
Container
Power Range:15-3300kW
Industrial-grade copper power cable, designed specifically for generator output terminals. Features GB-standard YJV cross-linked polyethylene insulation with high current capacity, superior temperature resistance, and excellent flame retardancy.
View Details
Acoustic Enclosure / Rain Cover Specifications
Match the soundproof enclosure and rain cover dimensions, base tank capacity, and compatible models to the generator power range.
| Specifications | Adapt to机组 length mm | Dimensions | Base-mounted | Notes |
|---|---|---|---|---|
| L*W*H mm | Fuel Tank Capacity (L) | |||
| 30KW | 1650 | 2200X900X1400 | 180 | Fits Perkins, Weichai 4-cylinder, Yuchai 4V |
| 50KW | 1900 | 2500X1000X1600 | 250 | Fits Dongkang 4BTA3.9, Yuchai 4D90Z, Shangchai SC4H95D, and others. |
| 70KW-100KW | 2150 | 2800X1150X1700 | 350 | Fits Yuchai 4A, Volvo 531, Weichai P4 |
| 75KW-100KW | 2300 | 3000X1200X1800 | 400 | Fits Yuchai 6B180L, Dongfeng Cummins 6BTAA5.9, Weichai WP6D132E, and others |
| 120KW-150KW | 2500 | 3200X1300X1800 | 450 | Compatible with Dongkang 6CTA8.3, Shangchai SC7H230, Yuchai 6B205, 6A245, and others. |
| 120KW-150KW | 2600 | 3300X1300X1900 | 500 | Fits Weichai 6-cylinder engines, Shacman, Yuchai |
| 180KW-200KW | 2800 | 3400X1300X1900 | 500 | Compatible with Dongkang 6LAA8.9, Shangchai SC9D310, SC9D340, etc. |
| 200KW-250KW | 3000 | 3800X1500X2150 | 700 | Fits Weichai NT855GA, Yuchai 6MK350, and Weichai WP10D264E. |
| 250KW | 3050 | 3900X1500X2150 | 700 | Fits Dongkang 6-cylinder electronic fuel injection |
| 300KW | 3100 | 4000X1600X2200 | 700 | Compatible with Weichai NT855G4, Yuchai 6MJ500, Shangchai 15G500, and others. |
| 350KW-400KW | 3500 | 4200X1600X2250 | 700 | Fits Rekon NT855G7A, Yuchai 6K600, Volvo TAD1641, and more. |
| 400KW-500KW | 3600 | 4500X1900X2550 | 800 | Compatible with KTAA-G6A heavy-duty engines, Volvo TAD643, Shangchai, Tongchai, Wudong, and other 1 2V models. |
| 500KW | 3550 | 4700X2000X2650 | 1000 | Compatible with Shangchai, Tongchai, Wudong, and other 1 2V models, including Yuchai 6TD840. |
| 600KW | 3900 | 4900X2000X2650 | 1000 | Compatible with 12V models from Shangkai, Tongchai, Wuhan, etc., and Yuchai 6TD1000. |
| 700KW-800KW | 4100 | 5500X2400X2900 | 1300 | Fits Weichai, Tongchai, Wudong, and other 12V models |
| 800KW-1000KW | 4700 | 6000X2600X2900 | 1500 | Compatible with Cummins KTA38G2, Perkins 4006-2 3TAG2A, Yuchai 6C1020, Shangchai 3 3W, etc. (Container) |
Note: The 2m8--4m2 soundproof enclosure with a rear door is available for custom orders to accommodate an increase of 19 cm in unit length.
1 General Low-Noise Test Standard: In an open outdoor area, excluding external noise, the sound level at 7 meters from the low-noise enclosure shall be within 75 dB to 85 dB.
2 Price includes tax but excludes shipping, control panel, and the cable connecting the motor to the control panel. Low-noise dimensions include the base and tank (dimensions are for reference only; actual unit size applies). Custom silent enclosure dimensions available upon request.
